Dampers
The active pulsation damper has been developed with a new technology that guarantees an optimal solution to minimize the pulsation effect of the flow. This is the most effective system to prevent pressure oscillations in the pump discharge.

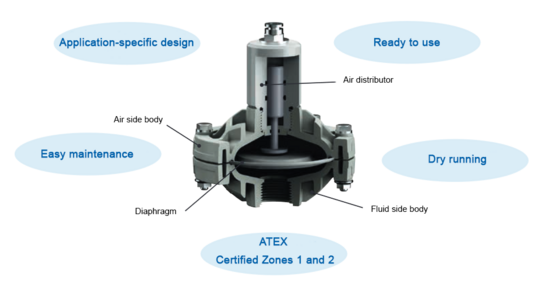

Operational principle
Composed of an automatic valve and a diaphragm, it operates actively with compressed air and requires minimal maintenance. In addition, FLUIMAC pulsation dampers do not require any adjustment or preload and automatically adapt to the fluid curve.
Features
- Significant reduction in pulsations, with an average of 70%-80%.
- Measurement and dosing
- Dampens pressure peaks in the discharge, increasing accuracy
- Filter presses
- Increases filter efficiency and life, creating a steady flow
- Spraying
- Constant spray range
- Fillings
- Eliminate filling errors and splashes
- Transfer
- Eliminates harmful water hammer, by saving pipes and valves
PHOENIX Dampers
| D20 | D25 | D40 | D50 |
| Connections: 3/4" BSP Air connection: 6 mm Max pressure: 8 bar Applicable to: P7-18-30 | Connections: 1" BSP Air connection: 8 mm Max pressure: 8 bar Applicable to: P50-65-100 | Connections: 1" 1/2 BSP Air connection: 10 mm Max pressure: 8 bar Applicable to: P160-250 | Connections: 2" BSP Air connection: 12 mm Max pressure: 8 bar Applicable to: P500-700-1000 |
ATEX Dampers
| D20 ATEX | D25 ATEX | D40 ATEX | D50 ATEX |
| Connections: 3/4" BSP Air connection: 6 mm Max pressure: 8 bar Materials: PP+CF Applicable to: P7-18-30 | Connections: 1" BSP Air connection: 8 mm Max pressure: 8 bar Materials: PVDF+CF Applicable to: P50-65-100 | Connections: 1" 1/2 BSP Air connection: 10 mm Max pressure: 8 bar Materials: POMc+CF Applicable to: P160-250 | Connections: 2" BSP Air connection: 12 mm Max pressure: 8 Bar Materials: AISI 316 Applicable to: P500-700-1000 |
